SSF - Mortise Lock with 20 mm faceplate, round, DIN right, Plastic latch and deadbolt
Product no.: N-3000251028
Interior Mortise Lock BB 20/55/72/8 mm DIN right silver rounded Class 1
Product Description:
- SSF guarantees that mortise locks for interior doors comply with the requirements of DIN 18251-1.
- Class 1: Locks for light interior doors
- The lock classifications simultaneously include an ascending quality performance.
- The classification keys according to the European standard EN 12 209 are assigned to the respective lock types on the individual catalog pages.
- Interior doors are subject to long-term and permanent stress.
- The lock's share of the total cost of a door/frame is relatively subordinate.
- SSF recommends high quality.
- Information on backset dimensions, locking types, variants, material finishes, and options corresponds to the descriptions of the individual lock series.
- Lock cases are fully enclosed and corrosion-protected by galvanization.
- To avoid the risk of breakage in the lock pocket area during lock and hardware installation, SSF locks are equipped with a legally protected lock pocket support.
- This also serves as chip protection.
Technical Product Data:
 |

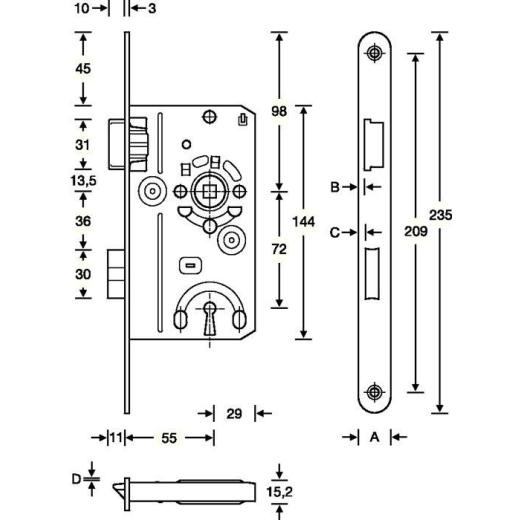

| Click on the drawing to enlarge! |
- BB version
- According to DIN 18251-1 Class 1
- Fully enclosed lock case
- 1-turn
- Rounded
- Faceplate aluminum finish, silver
- Faceplate width 20 mm
- Faceplate length 235 mm
- Backset 55 mm
- Distance 72 mm
- Square spindle 8 mm
- Plastic latch and deadbolt
- Without strike plate
- 1 key
DIN right: Stand in front of the door, which opens towards you. If the door hinges are on the right, it is referred to as DIN right.
DIN left: Stand in front of the door, which opens towards you. If the door hinges are on the left, it is referred to as DIN left.
Product Safety Information – Click here for more info
Price:
18,20 EUR
21 % VAT incl. excl. Shipping costs
