SSF - Mortise lock plate 20 mm, round, DIN left, latch and bolt made of zinc die-casting
Product no.: N-3000251084
Interior door mortise lock BB 20/55/72/8 mm DIN left silver round Class 1
Product description:
- SSF guarantees that mortise locks for interior doors comply with the requirements of DIN 18251-1.
- Class 1: Locks for light interior doors
- The lock classifications simultaneously include an increasing level of quality performance.
- The classification keys according to the European standard EN 12 209 are assigned to the respective lock types on the individual catalog pages.
- Interior doors are subject to long-term and permanent stress.
- The lock's share of the total cost of a door/frame is relatively subordinate.
- SSF recommends high quality.
- Information on backsets, locking methods, variants, material finishes, and options corresponds to the descriptions of the individual lock series.
- Lock cases are closed on all sides and corrosion-protected by galvanizing.
- To avoid the risk of breakage in the lock pocket area during lock and fitting assembly, SSF locks are equipped with a legally protected lock pocket support.
- This also serves as chip protection.
Technical product data:
 |

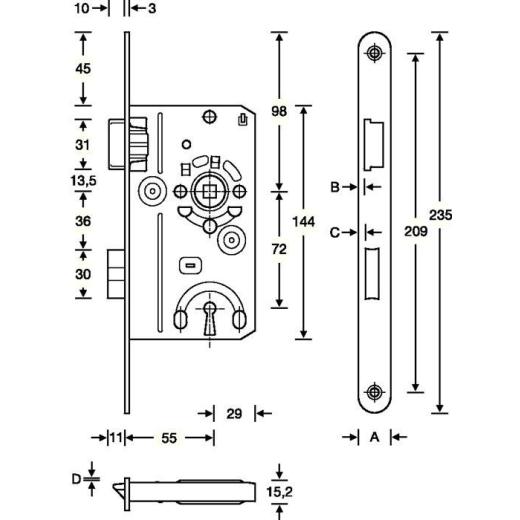

| Click on the drawing for more details! |
- BB version
- according to DIN 18251-1 Class 1
- all-sided closed lock case
- 1-turn
- rounded
- Plate aluminum finish, silver
- Plate width 20 mm
- Plate length 235 mm
- Backset 55 mm
- Distance 72 mm
- Square spindle 8 mm
- Latch and bolt made of zinc die-casting
- without strike plate
- 1 key
DIN left: You are facing the door that opens towards you. If the door hinges are on the left, it is called DIN left.
DIN right: You are facing the door that opens towards you. If the door hinges are on the right, it is called DIN right.
