BKS - Mortise lock faceplate 20 mm, square-edged, DIN right, latch and deadbolt plastic
Product no.: N-3000251059
Interior door mortise lock BB 20/55/72/8 mm DIN right silver square-edged Class 1
Product description:
- The comprehensive range of BKS mortise locks offers visual consistency and various locking options, e.g., for WC doors.
- It is the right solution for many different applications, from private interior doors to heavily frequented exit doors in administrative or industrial buildings.
- They are particularly durable and low-maintenance, which is advantageous for high-frequency use.
- And, of course, they comply with DIN 18250 and DIN 18251 standards.
Technical product data:
 |

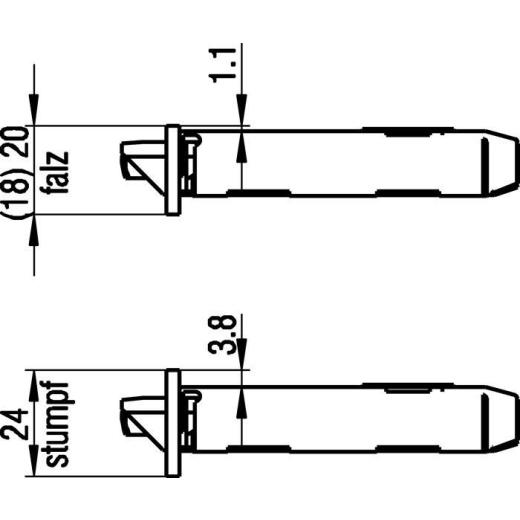

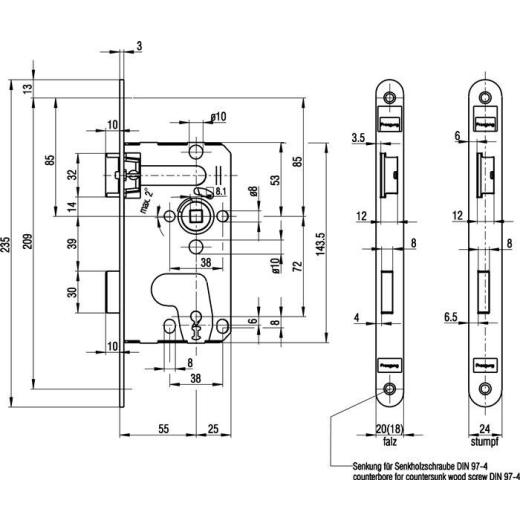

| Please click on the drawing! |
- BB Design
- According to DIN 18251-1 Class 1
- Lock case closed on all sides
- Single-turn
- Faceplate aluminum finish, silver
- Faceplate length 235 mm
- Backset 55 mm
- Distance 72 mm
- Square spindle 8 mm
- Without strike plate
- 1 key
DIN right: Standing in front of the door, which opens towards you. If the door hinges are on the right, it is referred to as DIN right.
DIN left: Standing in front of the door, which opens towards you. If the door hinges are on the left, it is referred to as DIN left.
Price:
18,20 EUR
21 % VAT incl. excl. Shipping costs
